DESIGN, DEVELOPMENT AND CONSULTING
FOR THE METAL FORMING INDUSTRY
1054 East Township Road 1191 · Tiffin, Ohio 44883
phone (419) 618-2406
hobrathdesign@gmail.com

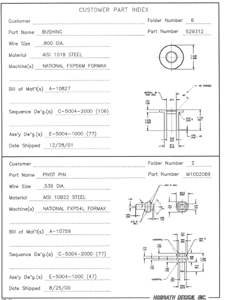

All projects are indexed and cross-referenced to indicate:
· Progression drawing number (showing method of manufacture)
· Assembly drawing number
· Bill of materials (listing all detail drawing numbers)
· Wire size and type
· Most have actual samples (progressions) of the forming process
Some major machine types (single die through large Multi-Station) include:
· National
· Sacma
· Sakamura
· Waterburry Farrel
· Formax
· Hatebur
· Nedschroef (2 of 3) back · next
